Description

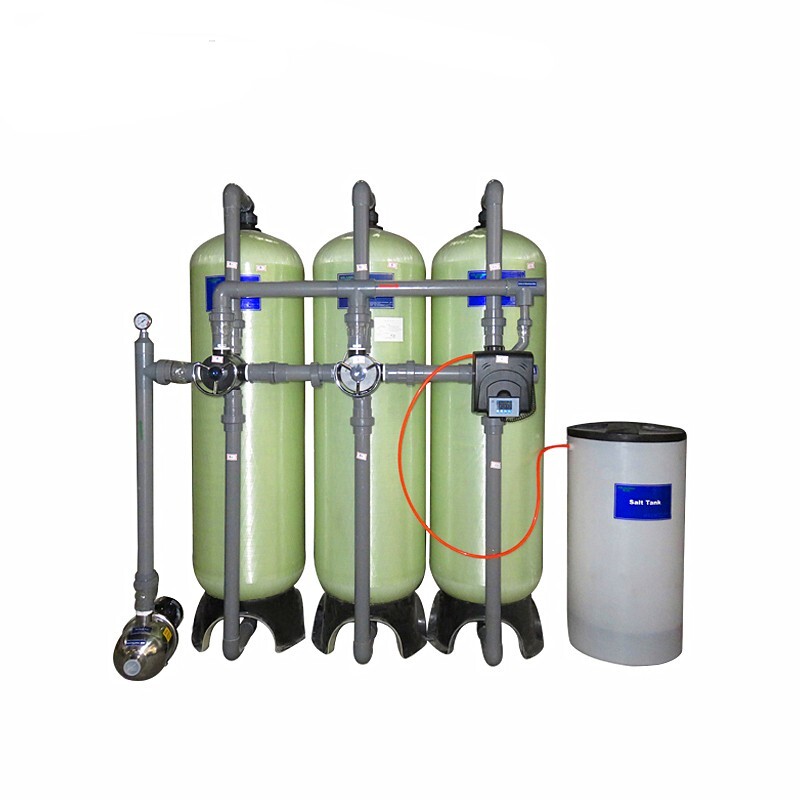

1000 LPH Water Softener Plant
SUMMARY: Five Stage Water Softener Plant
1. Silica Sand Vessel (FRP) (Size 16×65″) 1 No’s.
2. Softener Ion-Exchange Resin Vessel (FRP) (Size 16×65″) 1 No’s.
3. Manual Control Valve for Silica Sand, Activated Carbon & Resin. 3 No’s.
4. Sediment Filter Jumbo 20” 2 No’s.
5. Fitting UPVC S/80 1 Job.
- Brine Tank 120 Liter
- Granular Activated Carbon Vessel (FRP) (16X65”) 1 No’s.
8. Skid High Gauge SS/MS.
SILICA SAND FILTER :- Function (To Remove Physical Contamination & Suspended Particles)
Quantity 01 No Flow Rate 900 LPH
Pressure Drop 4 to 6 psi
Max Working Pressure Bar 8.5
Min Working Pressure Bar 1.3
Test Pressure Bar 10.5
Max Working Temperature 50 C
Sand Filter Size 150 PSI 16″ x 65″ Material of Filtration Vessel FRP (Fiber Reinforced Plastic)
Inlet & Outlet Size 1″ Filtration Media (120 kg) Silica Sand/Gravel
Valve Operating Mode Manual
Media Size 1 mm & 0.5 mm Mesh
Media Replacement time 2 Year
Softener Filter Ion-Exchange ResinFunction (The process ion-Exchange Occurs Through the resin beads. The Negative Charged
Molecules, Calcium & Magnesium are attracted to the positive bound of the resin.)
Quantity 01 No
Flow Rate 900 LPH
Pressure Drop 3 to 4 psi
Min Working Pressure Bar 1.3
Max Working Bar 8.5
Test Pressure Bar 10.5
Max Working Temp 50 C
Size of Vessel (150PCI 16″ x 65″ Material of Vessel FRP (Fiber Reinforced Plastic)
Inlet & Outlet Size 1″ Softener Media Ion-Exchange Resin
Media Resin Food Grade 100 Ltr
Manual Softener Valve
Softener control valve is been used to control back wash & REGARNATION
cycle for the Media filters & to keep water treatment system working at maximum
performance at 24 hour. per the raw water quality & usage of water.GRANULAR ACTIVATED CARBON
Function (The process Activated Carbon Filter out color, odor, chemicals (For Example: Chloride, bleaching agent, pesticide, trihalomethanes ). .)
Quantity 01 No
Flow Rate 900 LPH
Pressure Drop 3 to 4 psi
Min Working Pressure Bar 1.3
Max Working Bar 8.5
Test Pressure Bar 10.5
Max Working Temp 50 C
Size of Vessel (150PCI 16″ x 65″ Material of Vessel FRP (Fiber Reinforced Plastic)
Inlet & Outlet Size 1″ Activated Carbon
Activated Carbon 75 Ltr
Manual Valve
Control valve is been used to control back wash for the Media filters & to keep water treatment system working at maximum
performance at 24 hour. per the raw water quality & usage of water.
JUMBO SEDIMENT FILTER
05 MICRON
Jumbo sediment filter is a mainline filtration system, specially designed to filter sediment particles
like silt, miner scale, dust, rust, sand etc, at a very high flow rate of up to 20 LPM with a filtration
rating of 05 to 01 micron. It is the ideal remedy for all problems of water filtration for entire
Houses, Hotels, Swimming pools, Laundries etc. Quantity 02 NO’s
Make Taiwan
Maximum Flow Rate 05 GPM
Maximum Pressure 90 psi
Type of Cartridge Polypropylene fiber
Dia of Cartridge 2 ½” Length 20″
Inlet / Out Let 1” Housing Dia 4″ Filtration Micron Rating 05 Micron
Housing Material PolypropyleneReplacement Cartridge Cartridges need replacement after 1 to 2 month.
FITTING & INSTALLATION MATIRIAL : Fitting Material UPVC S/80.
